• Advance high speed microcontroller technology; allow grater accuracy & measurement of CO2. ?Over pressure alarm & pressure release systems; help assure patient safety.
• Separate digital display for actual value and set value of pressure and flow rate. ?Display for actual gas consumption & temperature.

PERFORMANCE FEATURES SOFTWARE

• Software controlled technology to initiate calibration of pressure and flow of system when insufflator is turn on.
• Software controlled pressure release mechanism to prevents excess pressure build up in abdomen.
• The CO2 insufflator has unique heating systems that provides a constant temperature for the CO2 to reduce chill effect of high flow insufflation & lenses telescope fogging.

ADVANCE FLOW CONTROL

• The CO2 is highly adaptable advance flow control insufflation for precise and safe gas flow control to meet patient requirements.
• Better precision for measurement of volume & flow of CO2.
• The CO2 has maximum pressure range from 0 to 35mm/Hg.

SAFETY

• Special feature that assures a constant pressure of the CO2.
• If actual pressure is more than set pressure, the system offers a rapid & instantaneous release over pressure preventing any contamination of the insufflator.

GAS ERROR INDICATOR

• Systems indicate unavailability of gas by audio & visual alarm.

TECHNICAL SPECIFICATION

PNEUMATICS

• Gas : CO2 (Medical).
• CO2 gas supply systems : UNF 7/16''.
• Input pressure MIN. to MAX.: 2 to 7 BAR.
• Insufflation pressure Min. to Max.: 4 - 30 mm Hg (To an accuracy of 1 mm Hg).
• Flow rate min to max. : 1 to 20 Ltrs /Min (Model - CO2 - 2000). : 1 to 30 Ltrs /Min (Model - LCO2 - 3000). ?Internal over pressure release valve.
• Output connection - 6 to 7 mm ID tube.

INTERFACE

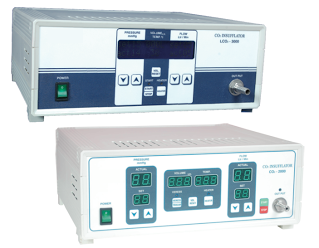

• 16 X 2 LCD for model - LCO2 - 3000.
• 7 Segment display for model - CO2 - 2000, CO2 - 3000. Showing set & actual pressure, set & actual flow, temperature & Gas consumption.
• Keyboard - feather touch

POWER SUPPLIES

• Type of power supply : 230 VAC + 15% @ 50 - 60 HZ.
• Protection by fuse : 5A.
• Power consumption - 125W Max with warmer else 20W Max.

MECHANICS

• Enclosure : ABS plastic box.
• Dimension : 260(L)mm x 290(W)mm x 105(H) mm
• Weight : Approx. 2 kg.
